IP1100+ Software Update
For 3.x
System Software Version 3.4.1
Date: 11/5/2010

1. DTMF Menu Administration
You can now set and enable an admin PIN and 5 custom prompts on a menu. The
PIN will allow anyone calling the menu to enter the PIN and access a DTMF-based
menu for configuring and recording prompts for the menu.
2. IP550 parameters added to PBX configuration
Call Waiting tone, call waiting display, digit timeout, backlight, and backlight timer
can now be set from the PBX Phone Settings page.
3. Delete of Extensions now prompts for confirmation
Per customer request, we now prompt for confirmation when you attempt to delete
an extension.
4. SIP Provider changes
RFC2833 Compensate option added to SIP Providers; this option is required for
some SIP providers. Also we now allow for a much larger registration string, as well
as multiple registration strings if necessary.
5. SPC Login for Queue Reports
Can now log in to SPC with username ‘reports’ and password specified under
PBXSetup->General. This gives an end user a portal into CDR and Queue Reports
as well as Live Queue Monitoring (see example below).
6. New Option on Outbound Route to pass inbound CID to outbound.
Note this only works if your provider allows it and in many cases there will be
different behaviors on local vs. long distance calls. You can use this to have Follow-
Me or call forwarding pass the CID Name and number to your mobile phone!
7. Enhanced Live Queue Data Formatting changes and fix to flicker on
live Queue Display
Live queue display has been reformatted for easier reading and use on large screen
displays.

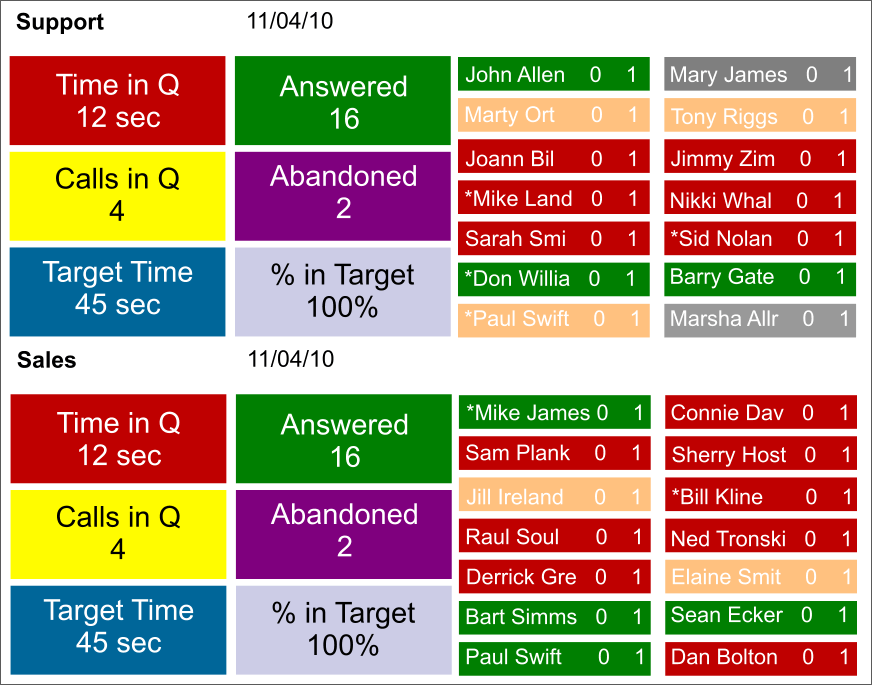

Live Queue Data Screen


8. Bug Fixes
Multicast Paging: In some cases multicast paging was distorting audio. This issue
has been resolved.
Log Restore: Now restarts logger after restoring logs. Previously required reboot for
logging to resume.
Recordings have had their volume increased. Volume level on recorded prompts
was lower than the actual call volume in some cases.
